Our Glass Reinforced Polyester (GRP) jacking pipes offer high axial strength for trenchless micro-tunnelling and relining applications.

GRP jacking pipes are typically utilised in the trenchless construction of water and wastewater pipelines. Other applications include road/rail culverts, ducts, asset encasement and pipe relining.

View partnership page

  • DN300 to DN3000 pipe diameters available.

  • SN20,000 to SN1,000,000 ring stiffness.

  • Stainless steel & GRP coupling options available.

  • Light weight and corrosion resistant.

  • Grout injection nozzles, customised fittings & manholes available.

  • ISO25780 accredited & WSAA appraised.

Overview

Superlit GRP jacking pipes are designed to meet the exacting demands of pipeline construction and rehabilitation using micro-tunnelling and pipe-relining methods.

GRP jacking pipes are recognised for their corrosion resistance, excellent structural characteristics and their and ability to withstand the extreme axial forces imparted during the pipe-jacking process.

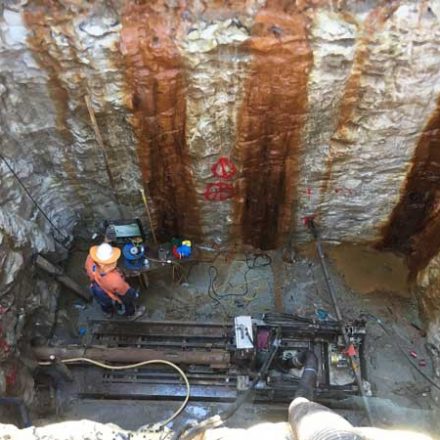

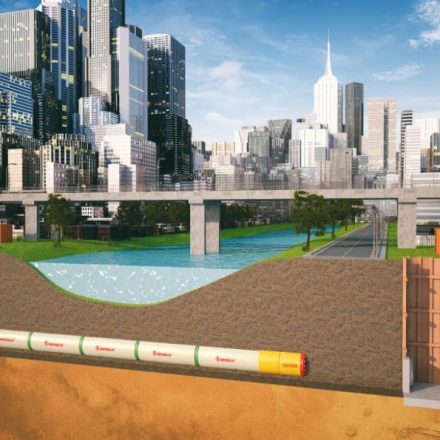

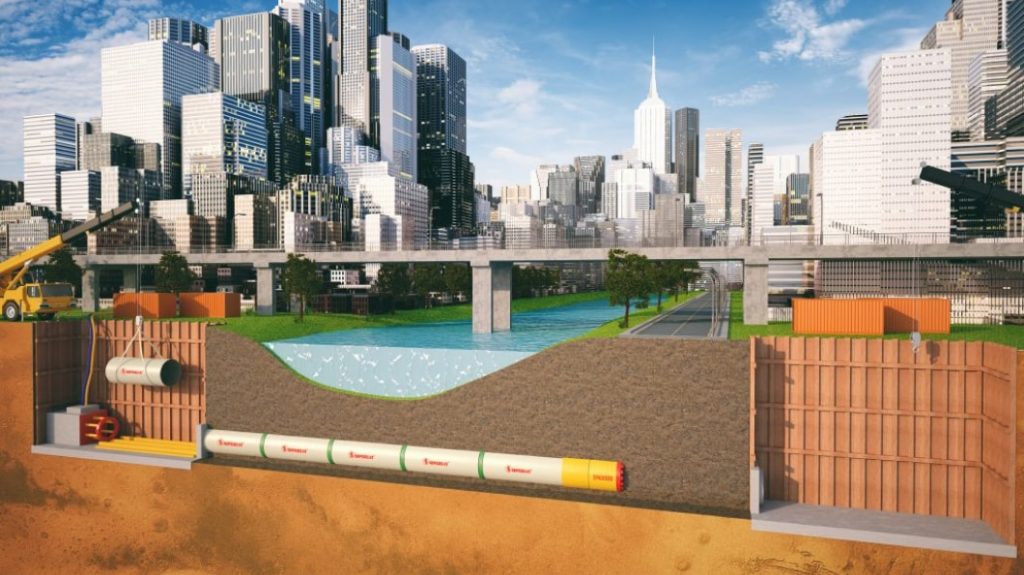

A diagram showing the use of GRP Jacking pipe in an urban setting

Applications

Our GRP jacking pipe is suitable for use in pressure, non-pressure and trenchless applications for potable, non-potable, industrial, drainage and wastewater systems.

  • Water
  • Sewage & wastewater
  • Pipe-relining
  • Road & rail culverts
  • Asset encasement (e.g. protection for pressure pipelines)
  • Ducts

Advantages

The GRP Jacking pipe has been engineered to deliver a range of features and benefits that make it suitable for the applications above, including:

  • Superior axial compressive strength
  • Excellent hydraulic performance
  • Smaller tunnel diameter and reduced spoil volume
  • Lower jacking forces required during installation
  • Smaller entry/exit pits
  • Longer drive lengths
  • Faster construction time and lower installation costs
  • Reduced environmental disturbance and social costs

Range and properties

  • Diameters: DN300 – DN3000
  • Ring Stiffness: SN20,000 – SN1,000,000
  • Coupling material: GRP or Stainless Steel
  • Pipe lengths: 1m to 5.8m (standard length 2m)
  • Ultimate Compressive Strength: 85N/mm2
  • Jacking Force Safety Factor: 3.5
  • Colebrook-White Co-efficient: 0.01mm

CHOOSE YOUR COUPLING

CHOOSE YOUR STIFFNESS

SN 20,000 - SN 64,000



Pipe Stiffness SN (N/m2)
OD (mm) 20, 000 32,000 40,000 50,000 64,000
ID Mass Fmax ID Mass Fmax ID Mass Fmax ID Mass Fmax ID Mass Fmax
mm kg/m kN mm kg/m kN mm kg/m kN mm kg/m kN mm kg/m kN
345 323.0 23 11 323.0 23 11 321.8 24 24 319.4 27 50 317.2 29 74
376 352.6 27 17 352.6 27 17 350.6 29 41 348.0 32 72 345.8 34 98
427 404.0 30 12 400.4 35 62 398.0 38 95 395.4 41 130 392.8 44 166
478 452.2 38 59 448.0 44 124 445.6 47 161 442.6 51 207 440.8 54 234
515 487.2 44 98 482.8 50 171 480.0 55 217 476.8 59 270 474.6 63 305
530 501.6 46 111 497.0 53 190 494.0 58 241 490.8 63 295 487.4 68 352
550 520.4 50 137 515.7 57 220 513.0 62 268 509.2 68 335 505.8 73 394
618 584.8 63 276 579.5 72 382 576.0 79 451 572.2 86 526 568.4 92 601
650 615.0 70 277 609.0 81 403 606.0 87 466 601.8 95 553 597.8 102 635
718 679.6 84 387 673.0 98 540 669.6 105 619 664.8 115 728 660.4 125 829
760 718.0 97 454 712.6 110 587 708.8 118 679 703.6 130 805 699.0 140 916
820 776.0 110 485 769.0 127 670 764.6 138 786 759.2 151 927 754.0 163 1,062
860 814.0 121 566 806.0 141 788 802.0 151 898 796.4 165 1,052 790.8 179 1,204
924 874.0 141 730 866.0 163 969 862.0 174 1,087 855.6 191 1,276 850.0 206 1,440
960 908.0 153 822 900.0 175 1,070 895.0 189 1,224 889.0 206 1,408 883.0 223 1,590
1,026 971.0 172 981 962.0 200 1,279 957.0 215 1,444 950.0 236 1,673 943.6 255 1,881
1,099 1,040.0 198 1,196 1,030.0 231 1,552 1,025.0 247 1,728 1,017.6 270 1,987 1,011.0 292 2,217
1,127 1,066.6 208 1,279 1,056.2 243 1,658 1,051.0 260 1,846 1,043.0 286 2,134 1,036.6 307 2,362
1,229 1,163.0 248 1,624 1,153.0 284 2,021 1,146.0 309 2,297 1,138.0 338 2,611 1,130.2 366 2,914
1,290 1,220.0 276 1,875 1,209.0 318 2,334 1,202.4 343 2,607 1,194.4 373 2,936 1,186.6 402 3,254
1,348 1,275.0 301 2,094 1,264.0 344 2,573 1,257.0 372 2,876 1,248.0 408 3,263 1,240.0 439 3,605
1,399 1,323.4 323 2,295 1,311.4 373 2,837 1,304.2 402 3,160 1,295.0 440 3,571 1,286.6 474 3,943
1,434 1,357.0 337 2,420 1,344.0 393 3,022 1,337.0 422 3,344 1,327.6 461 3,774 1,318.8 498 4,173
1,499 1,418.6 368 2,699 1,405.0 429 3,358 1,398.0 459 3,695 1,388.0 503 4,173 1,379.0 542 4,600
1,536 1,453.4 388 2,413 1,439.6 450 3,098 1,432.0 485 3,472 1,422.0 529 3,962 1,412.0 574 4,448
1,638 1,550.0 440 2,757 1,536.0 508 3,499 1,527.0 552 3,972 1,516.0 604 4,546 1,506.4 650 5,044
1,720 1,628.0 484 3,240 1,612.0 565 4,130 1,603.2 609 4,615 1,592.0 666 5,229 1,582.0 715 5,774
1,842 1,743.0 557 3,898 1,726.0 650 4,910 1,717.0 698 5,442 1,705.0 763 6,146 1,694.0 822 6,788
1,944 1,839.4 621 4,476 1,822.0 721 5,569 1,812.0 778 6,193 1,800.0 846 6,937 1,787.0 920 7,737
2,046 1,936.0 688 5,079 1,918.0 797 6,269 1,907.0 863 6,991 1,894.0 940 7,839 1,882.0 1,011 8,617
2,160 2,044.0 766 5,794 2,026.0 881 7,051 2,014.0 957 7,883 2,000.0 1,045 8,847 1,987.0 1,126 9,736
2,250 2,129.0 832 6,410 2,110.0 958 7,792 2,097.0 1,044 8,730 2,083.0 1,136 9,734 2,069.6 1,223 10,689
2,453 2,321.0 989 6,977 2,300.0 1,142 8,642 2,286.0 1,243 9,743 2,273.0 1,336 10,760
2,553 2,416.0 1,069 7,687 2,393.0 1,242 9,584 2,379.0 1,347 10,731 2,369.0 1,422 11,545
2,658 2,515.0 1,161 8,531 2,493.0 1,334 10,421 2,478.0 1,451 11,700
2,758 2,610.0 1,247 9,314 2,586.6 1,438 11,400
2,858 2,704.0 1,345 10,221 2,680.4 1,544 12,402
2,962 2,803.0 1,439 11,088
3,065 2,901.0 1,536 11,986
