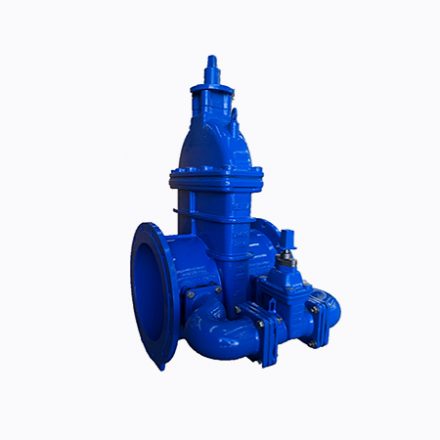

Integral Bypass Gate Valve
Clover’s resilient seated integral bypass gate valves comply with AS2638.2 for pipeline isolation use in above and below ground pressure water supply and sewerage applications.
-
Three bolt coupling design up to DN150 for fast field installation.
-
Can be installed without disassembling which makes installation quick and simple.
-
Captive bolt head for one spanner operation, simplifying field assembly.
-
Certified to AS/NSZ 4998.
Overview
Our high strength 316 stainless steel mechanical couplings join a wide range of pipe materials and can be used to join pipes with equal or differing outside diameters (Up to 27mm). This makes the coupling ideal for joining PVC-O, PVC-M, PVC-U, GRP, ductile iron, asbestos cement, and steel.
While this product is manufactured with a lightweight 316 Stainless Steel barrel and fasteners, and feature wedge shape EPDM Seals, it is not recommended for use on polyethylene pipe.
Properties, dimensions and standards
- Size Range: DN80 – DN600.
- Allowable Operating Pressure: 1600kPa.
- Maximum Temperature: 60 C.
- Certifications: AS/NZS 4998:2009 & AS/NZS 4020.
- Product Licence: OMK30060.
- WSAA Appraisal: PA1728.
Long series
| DN | Range | A (Barrel) | L | M | # Bolts | Nominal Setting Gap | Maximum Deflection Each End O | Code |
| 80 | 88-103 | 176 | 270 | 216 | 3 | 20 | 3 | DGVPC080 |
| 100 | 108-132 | 176 | 270 | 243 | 3 | 20 | 3 | DGVPC100 |
| 150 | 158-182 | 176 | 270 | 304 | 3 | 25 | 3 | DGVPC150 |
| 200 | 214-238 | 176 | 285 | 353 | 5 | 35 | 3 | DGVPC200 |
| 225 | 242-269 | 176 | 285 | 397 | 5 | 35 | 3 | DGVPC225 |
| 250 | 270-295 | 176 | 285 | 417 | 6 | 35 | 3 | DGVPC250 |
| 300 | 330-356 | 216 | 340 | 481 | 6 | 35 | 3 | DGVPC300 |
| 375 | 400-429 | 216 | 340 | 565 | 8 | 35 | 3 | DGVPC375 |
| 450 | 488-512 | 216 | 340 | 636 | 10 | 35 | 1.5 | DGVPC450 |
| 500 | 540-565 | 216 | 340 | 703 | 12 | 35 | 1.5 | DGVPC500 |
| 600 | 656-680 | 216 | 340 | 818 | 14 | 35 | 1.5 | DGVPC600 |

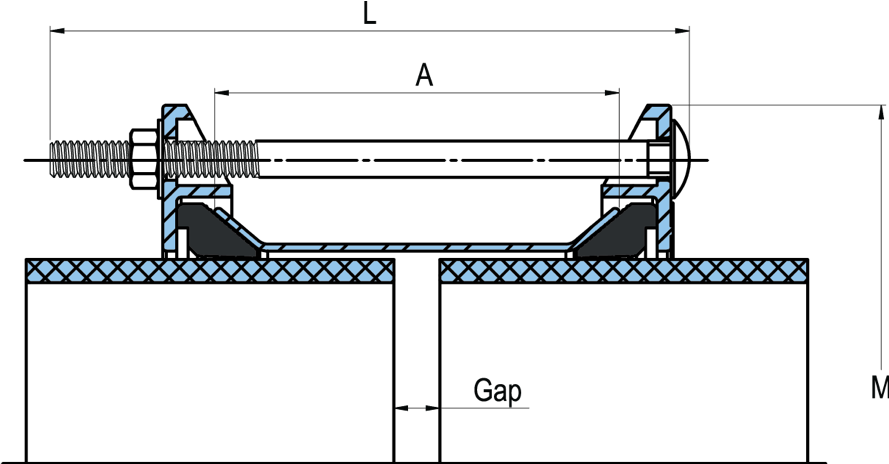

Short series
| DN | Range | A (Barrel) | L | M | # Bolts | Nominal Setting Gap | Maximum Deflection Each End O | Code |
| 80 | 88-103 | 101 | 210 | 216 | 3 | 20 | 3 | DGVPC080SB |
| 100 | 108-132 | 121 | 210 | 243 | 3 | 20 | 3 | DGVPC100SB |
| 150 | 158-182 | 136 | 210 | 304 | 3 | 25 | 3 | DGVPC150SB |
All fasteners supplied as M16. All dimensions are quoted in millimeters.
| Item | Part Name | Material |
| 1 | Barrel | 316 Stainless Steel |
| 2 | Seal | EPDM AS1646 |
| 3 | Flange | Ductile Iron AS1831 Polymeric Coated |
| 4 | Bolt | 316 Stainless Steel or Galvanised Steel |
| 5 | Hex Nut | 316 Stainless Steel with Anti Seize Coating or Galvanised Steel |
| 6 | Washer | 316 Stainless Steel or Galvanised Steel |

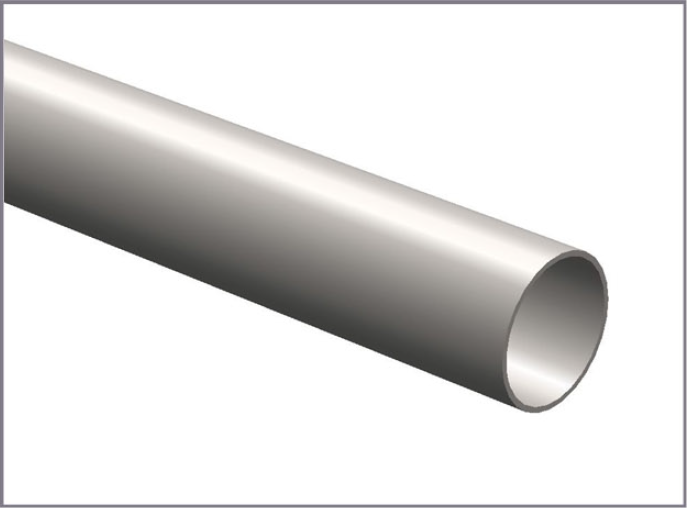

1.Examine the pipe ends to ensure they are round, smooth, free of dents and score marks. Ensure they are within the specified tolerance for that material type. Any weld beads/marks must be ground smooth while correctly maintaining the correct surface profile. Ensure that pipe ends for engagement into coupling are free from rust, scale or any other foreign matter that may affect the performance of the coupling (Fig. 1).

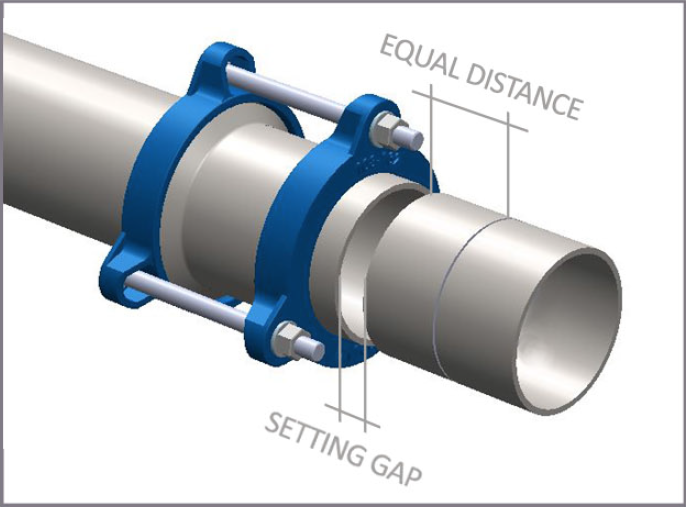

2.Align the pipes to be joined, ensuring they are concentric. Mark both pipe ends at a distance of half the clamp length minus half the setting gap of the coupling to be used (refer table on page 1 and Fig. 2). Lubricate the surfaces of the sealing gaskets with approved lubricant. When joining two pipes with varying outside diameters, position the coupling end with the nuts on the pipe with the smaller outside diameter.
3. Adjust the gap setting (Fig. 2) between the pipe ends for appropriate coupling.
4.Using the markings as a guide on the pipe ends, slide the coupling to a central position over the pipe ends. For ease of installation, rotate coupling so all bolts and nuts are accessible.

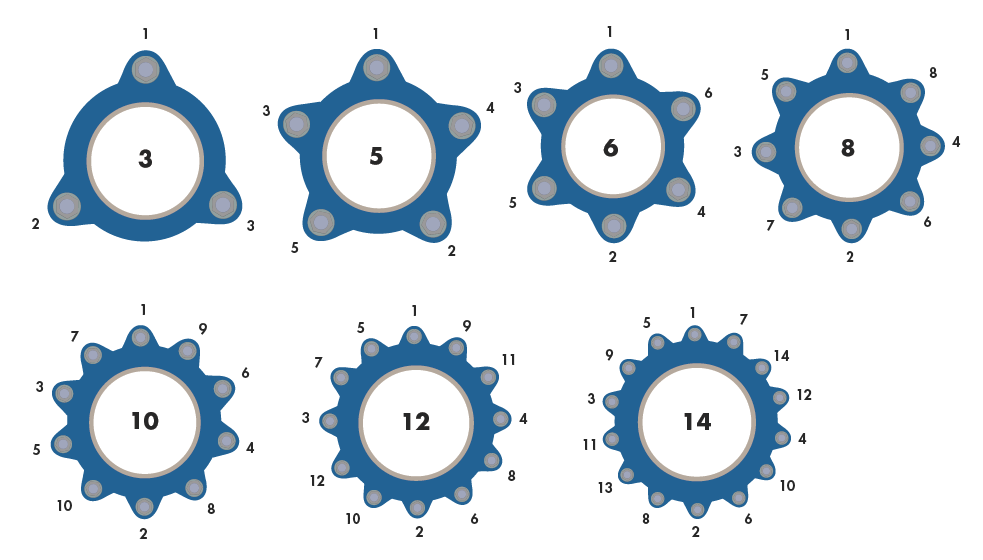

5.When tightening coupling, bolts should be tightened in a diametric star pattern (Fig. 3). Give each nut 1 – 2 turns at a time to evenly engage the end rings and gasket assembly. Using a torque wrench, all bolts must be properly tightened to the correct torque provided in the table on page 1. Retension all fasteners after 30 minutes to compensate for loss of tension through gasket relaxation. It is recommended that an anti-galling lubricant be applied to stainless steel or galvanised fasteners, as required.
For more details, read our how to install unrestrained mechanical coupling guide.
Fig 1.
Fig 2.
Fig 3. VPC Coupling Installation
Related Information
Product

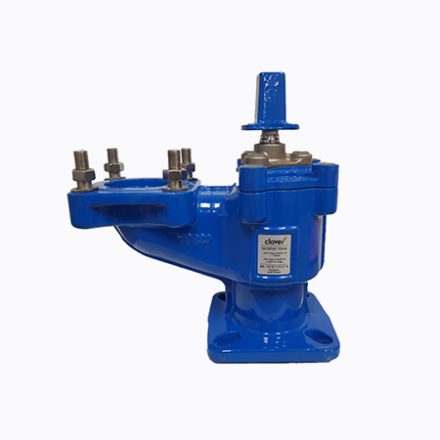

Isolation Valve (Hydrant/Air)
Our range of isolation valves provide isolation of hydrants and air valves in applications that require safe and easy maintenance.
Product

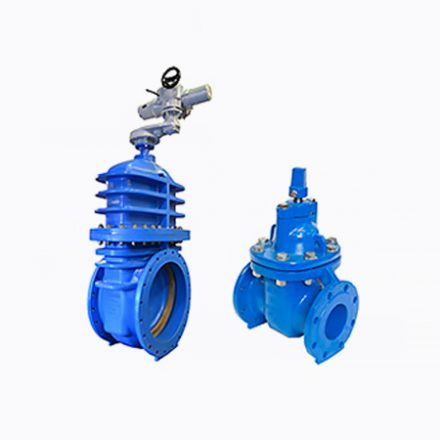

Metal Seat Gate Valve
